Motor Technical Data
|
TYPE |
Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
| VDC | r/min | mA | r/min | mN.m | W | A | mN.m | A | |
| 36ZY50-2442 | 24 | 4200 | 120 | 3450 | 12 | 4.2 | 0.43 | 52 | 1.6 |
Gear Motor Technical Data

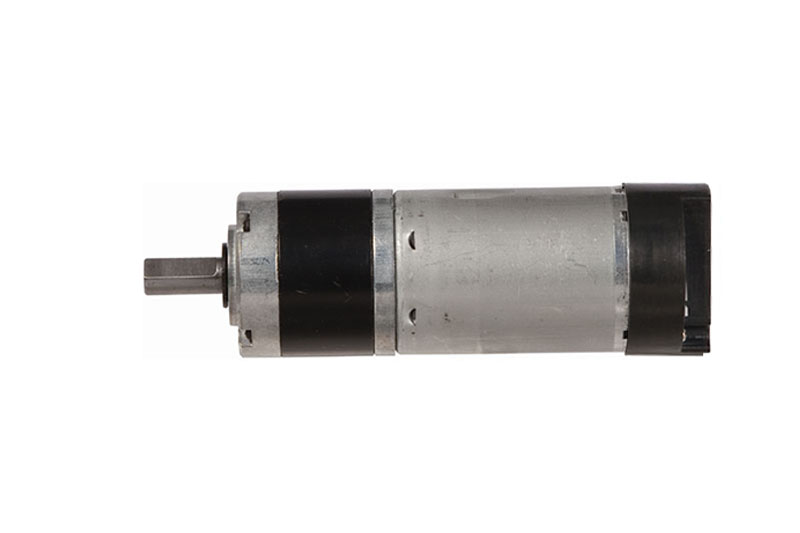

36ZY50-2442 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 | 426 | 495 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |

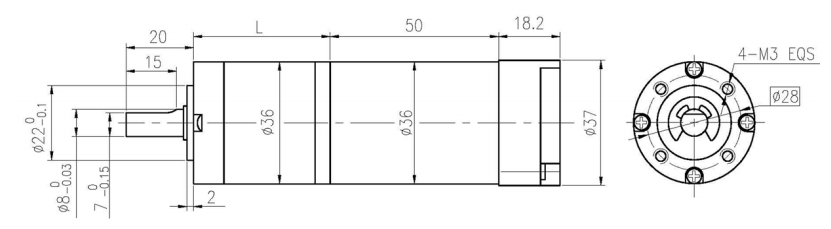

| Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 |
| No-load speed r/min | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 23 | 19 | 17 | 14 | 12 | 10 | 8.5 |
| Rated speed r/min | 930 | 666 | 246 | 182 | 128 | 68 | 49 | 35 | 25 | 19 | 16 | 14 | 11 | 9.7 | 8.1 | 7.0 |
| Rated torque N.m | 0.040 | 0.056 | 0.14 | 0.18 | 0.26 | 0.45 | 0.62 | 0.88 | 1.2 | 1.4 | 1.7 | 2.0 | 2.4 | 2.8 | 3 | 3 |
| Max. permissible load in a short time N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
