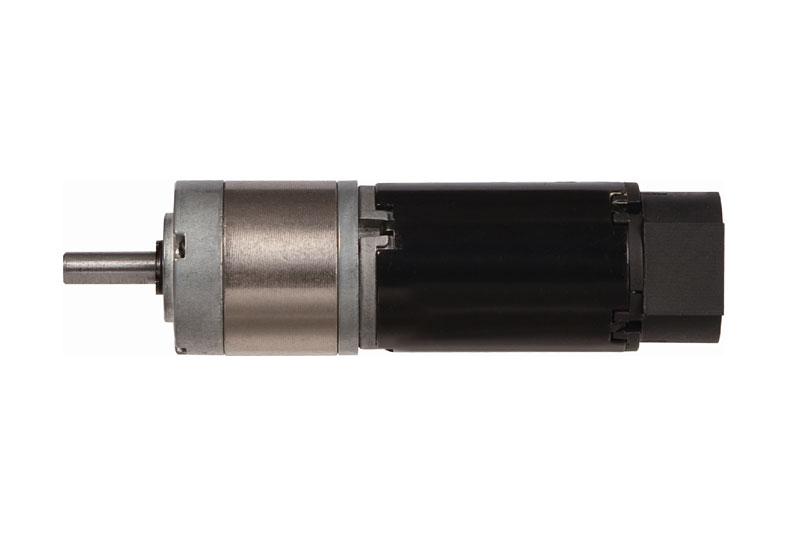

32mm OD Planetary Gearbox
- Permissible Load Range: 3 N·m to 3.0 N·m
- Ring Gear Material: Metal
- Application: Floor mopping robot
Motor Technical Data
|
TYPE |
Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
| VDC | r/min | mA | r/min | m. Nm | W | mA | m. Nm | A | |
| 31ZY51G-2450 | 24 | 5000 | 75 | 3830 | 25 | 9.8 | 570 | 106.8 | 2.3 |
Gear Motor Technical Data
31ZY51G-2450 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |

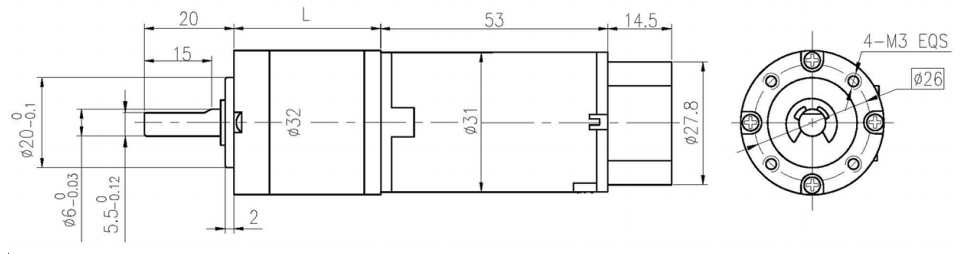

| Length(L) mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 |
| No-load speed
r /min |
1351 | 962 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 28 | 23 | 20 |
| Rated speed r/min | 1035 | 737 | 274 | 202 | 142 | 75 | 54 | 38 | 28 | 21 | 17 | 15 |
| Rated torque N.m | 0.083 | 0.117 | 0.284 | 0.385 | 0.547 | 0.929 | 1.294 | 1.823 | 2.533 | 2.969 | 3.592 | 4.166 |
| Max. permissible load in a short time N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 |
