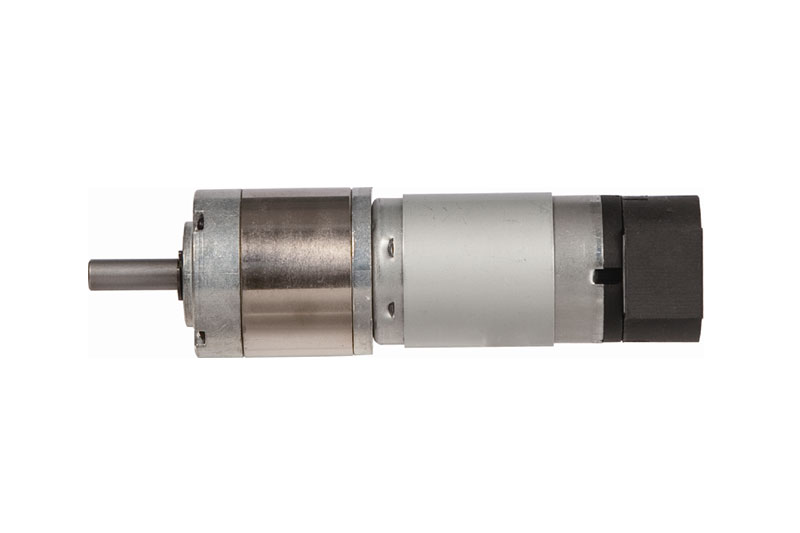

32mm OD Planetary Gearbox
- Permissible Load Range: 0.3 N·m to 3.0 N·m
- Ring Gear Material: Metal
- Application: electronic toys
- Tip: Adding the code “P” to the motor model indicates that a shielding cover is equipped with a diameter of Φ28.9.
Motor Technical Data
|
TYPE |
Rated
voltage |
No-load
speed |
No-load
current |
Rated
speed |
Rated
torque |
Output
power |
Rated
current |
Stall
torque |
Stall
current |
| VDC | r/min | mA | r/min | mN.m | W | mA | mN.m | A | |
| 28ZY47P-2460 | 24 | 6000 | 100 | 4500 | 17 | 8.0 | 470 | 65 | 1.8 |
P – Shielding case, OD 28.9mm.
Gear Motor Technical Data
28ZY47P-2460 DC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 218 | 253 | 305 | 354 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |

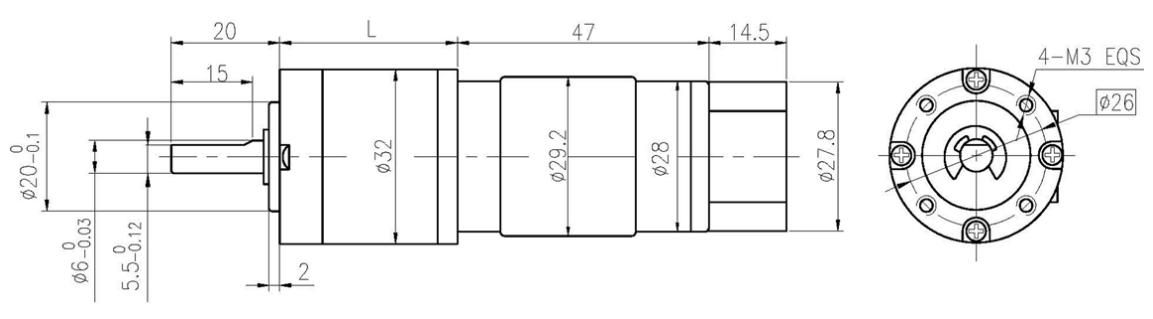

| Length(L) mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 | 46.6 | 46.6 |
| No-load speed r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 33 | 28 | 24 | 20 | 17 |
| Rated speed r/min | 1213 | 869 | 321 | 237 | 167 | 88 | 63 | 45 | 32 | 25 | 21 | 18 | 15 | 13 |
| Rated torque N.m | 0.06 | 0.08 | 0.19 | 0.26 | 0.37 | 0.63 | 0.88 | 1.2 | 1.7 | 2.0 | 2.4 | 2.8 | 3 | 3 |
| Max. permissible load in a short time N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 |
