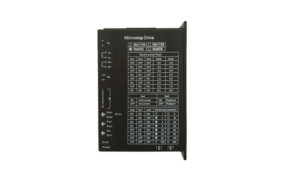

◆Input Voltage: AC80V
◆Compatible Motors: Two-phase hybrid stepper motors
◆Motor Leads: Supports 4-wire, 6-wire, and 8-wire configurations
◆Frame Size: 57-110mm outer diamete
◆Input Voltage: AC80V
◆Compatible Motors: Two-phase hybrid stepper motors
◆Motor Leads: Supports 4-wire, 6-wire, and 8-wire configurations
◆Frame Size: 57-110mm outer diamete
1. Feature:
◆ Wrong phase protection, over current protection
◆ Multiple subdivisions to choose from
◆ Low speed anti-shake, low noise; high speed and high torque
◆ Optically isolated signal input
◆ Single/double pulse setting
◆ Input pulse frequency 0～200KHZ
◆ Automatic low-power operation at rest
◆ 40V-80VAC Single power input ,voltage: ：40V-80VAC
2. Parameter Setting:
The MA806 series driver uses eight-position dial switches to set subdivision accuracy, dynamic current and single/double pulse, details:
| SW1 SW2 SW3 | current choice |
| SW4 | Semi/ full flow |
| SW5 | single/double pulse setting |
| SW6 SW7 SW8 | Subdivision choice |
output current choice
The maximum output current of the MA806 series driver is 6A/phase (peak). A total of 8 current levels can be set with the three-digit dial switch, from 2.5A to 6A (see the current selection table for details) to match different motors.
Note: The white square on the silk screen corresponds to the actual position of the switch.
| SW1 | SW2 | SW3 | MA806 |
| OFF | OFF | OFF | 2.5A |
| ON | OFF | OFF | 3.0A |
| OFF | ON | OFF | 3.5A |
| ON | ON | OFF | 4.0A |
| OFF | OFF | ON | 4.5A |
| ON | OFF | ON | 5.0A |
| OFF | ON | ON | 5.5A |
| ON | ON | ON | 6.0A |
subdivision choice
The subdivision accuracy is set by the SW6, SW7, and SW8 three-position dial switches.
| SW6 | SW7 | SW8 | MA806A | MA806C | MA806D |
| ON | ON | ON | 2 | 5 | / |
| ON | ON | OFF | 4 | 10 | / |
| ON | OFF | ON | 8 | 20 | / |
| ON | OFF | OFF | 16 | 25 | / |
| OFF | ON | ON | 32 | 40 | / |
| OFF | ON | OFF | 64 | 50 | 50 |
| OFF | OFF | ON | / | / | 100 |
| OFF | OFF | OFF | / | / | / |
Semi/full flow
SW4
ON semi flow
OFF full flow
single/double pulse setting
SW5
ON double pulse
OFF single pulse
