Product Overview

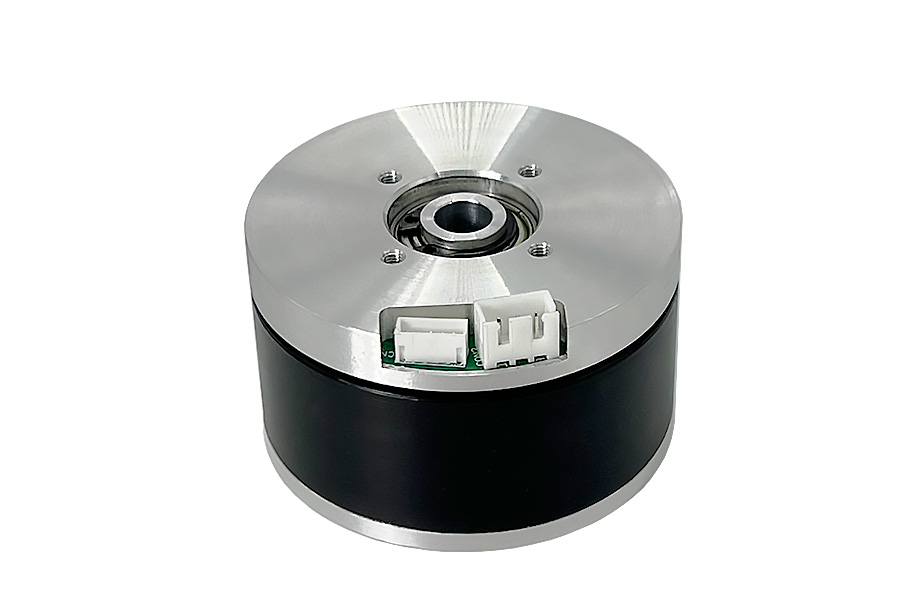

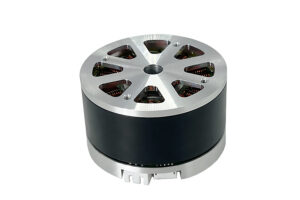

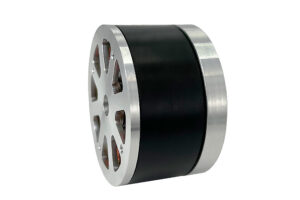

The ZGC50JM10 series is a premium 50mm class outrunner brushless motor engineered for high-performance applications. Featuring an advanced 26-pole magnetic design and IP65-rated protection, it delivers exceptional power density in a compact form factor—making it the ideal propulsion and drive solution for professional drones, high-end garden tools, and precision gimbal systems.

Key Features：

• Ultra-Smooth Power Delivery: The 26-pole configuration minimizes torque ripple, ensuring exceptionally smooth and stable operation across the entire speed range.
• Superior Environmental Durability: With an IP65 protection rating (excluding the output end) and an operational range of -20°C to 60°C, it thrives in dusty and humid outdoor conditions.
• High Energy Efficiency: A low line resistance of 0.39Ω reduces thermal loss, while Class F insulation supports a sustained 100W power output.
• Versatile Application: Fully optimized for gimbals, drones, and garden tools.

Performance Curve Analysis

1. ZGC50JM10-24V: High Torque for Heavy-Duty Applications

• Torque Advantage: Delivers a powerful rated torque of 0.53 N.m, providing superior driving force.
• Performance Profile: Optimized for high-load capacity at a rated speed of 1800 RPM. By utilizing a higher rated current of 4.7A, it achieves significant torque density for demanding tasks.
• Best Applications:
• Lawn Mowers & Trimmers: Ensures the blades maintain cutting efficiency without stalling, even when encountering dense or tough vegetation.
• Heavy-Duty Gimbals: Perfect for professional gimbals carrying heavier camera gear, providing stable support and pointing accuracy.

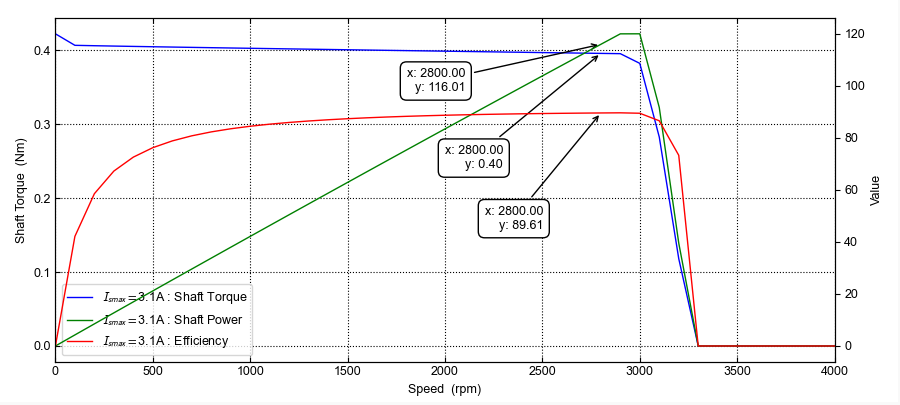

2. ZGC50JM10-36V: High Speed & Efficiency for High-Frequency Operations

• Speed Advantage: Features a rated speed of 2800 RPM with a maximum speed capability of 3000 RPM.
• Performance Profile: Operating at a rated current of only 3.1A, this model maintains a 100W output while minimizing system heat generation and extending battery life.
• Best Applications:
• Drones & Multi-rotors: Higher RPM translates to faster lift response, making it suitable for flight missions requiring high-sensitivity control.
• Garden Blowers: Leverages high-speed rotation to drive impellers for high-velocity airflow and improved clearing efficiency.

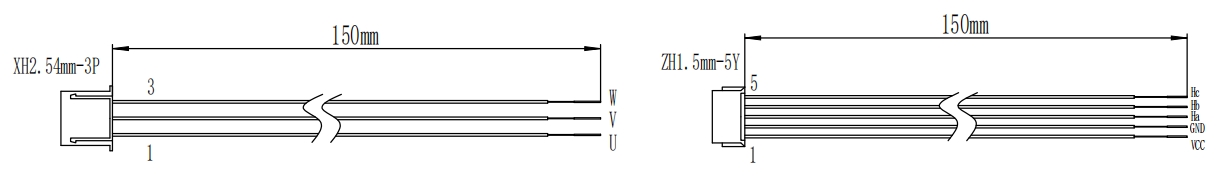

Wiring Definitions
